Automated steel drum seam welding machine production line

Name: Automated steel drum seam welding machine production line
Brand: Shanghai Trintfar Intelligent Equipment Co., Ltd.
Price: 45,000.00 USD
Availability: InStock

Tous les produits

Machines de soudage par points
(49)

Soudeuse de stockage d'énergie
(15)

Machine de soudage personnalisée
(43)

Ligne de production de la nageoire du radiateur de transformateur
(14)

Machine de soudure continue
(44)

machine à souder les goujons
(14)

Chaîne de production de soudure de tambour métallique
(26)

Machine de soudure de projection
(18)

Machine de soudage bout à bout
(40)

Machine de soudure laser de fibre
(23)

Machine de soudure de diffusion
(6)

Machine de soudage de treillis métallique
(9)

Bras robotisé
(14)

L'autre machine de soudure
(28)

Les Meilleurs Produits

Machines à souder à fûts en acier

Certificat

Examens de client

Vous pouvez également contacter mon adresse e-mail ou WhatsApp. J'attends votre réponse. Je vous en prie, faites-moi confiance. WhatsApp: +86 15216883036 Shanghai Trintfar équipement intelligent Co. Ltd

—— Chers amis

Je suis en ligne une discussion en ligne

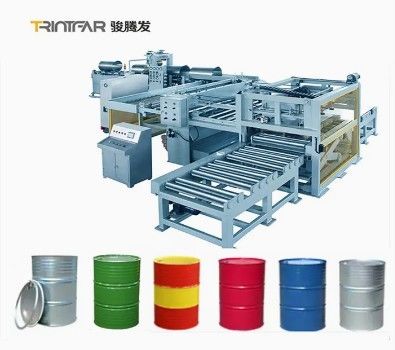

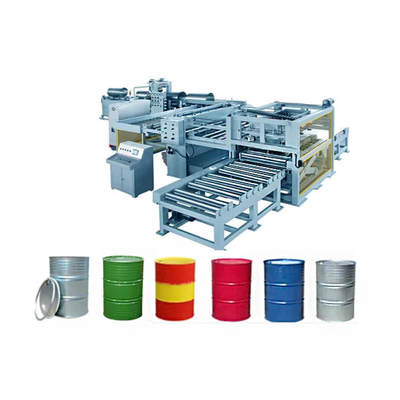

Automated steel drum seam welding machine production line

Image Grand : Automated steel drum seam welding machine production line

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Trintfar
Certification:	CE

Conditions de paiement et expédition:

Quantité de commande min:	1
Prix:	10000~80000
Détails d'emballage:	Supports en bois / étuis en bois
Délai de livraison:	90 ~ 120
Conditions de paiement:	L / c, d / a, d / p, t / t

Contact

Automated steel drum seam welding machine production line

description de

Application:	Soudage de couture à tambour en acier	Puissance (w):	Réglable
Vitesse de soudage:	16m / min	Plage d'épaisseur du matériau:	0,8-1,5 mm
Compression de la pression d'air:	0,6 MPA	Plage de longueurs de tambour:	470-1100 mm

Product Description

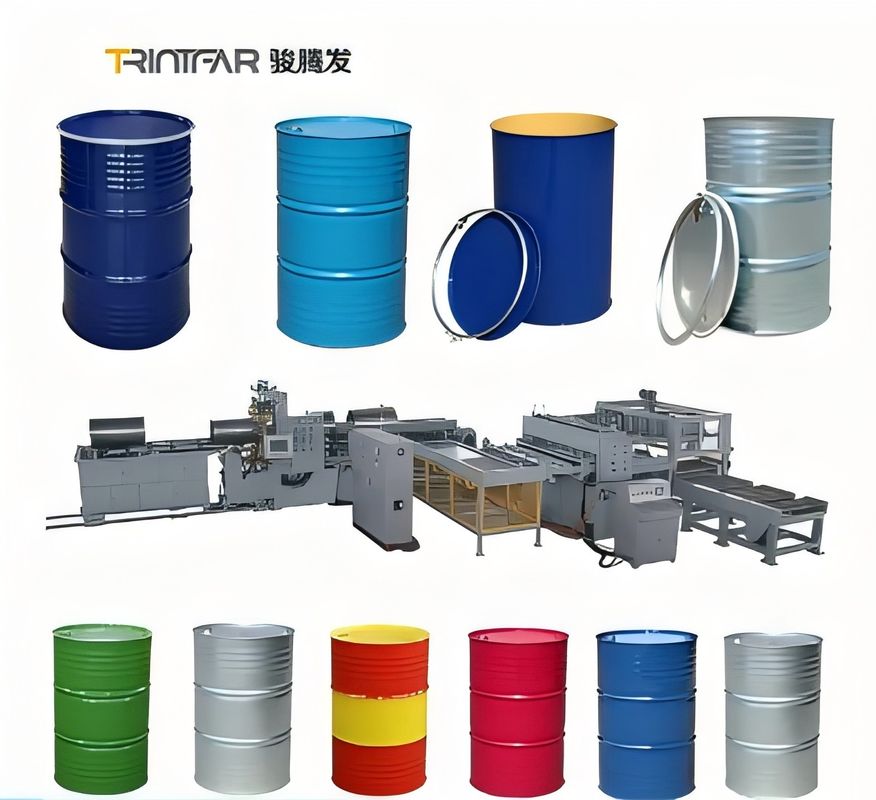

Automated steel drum seam welding machine production line 0

Product Description
Automated steel drum seam welding machine production line 1

Automated steel drum seam welding machine production line 2

Technical Solution.
1. 7 layers of circle rolling technology" (core tech of our company) has been adopted in Middle Equipment.
2. High-pressure painting without air, fuel heating has been adopted in Post Production Equipment.
Automatic production line, 11 workers are required only.
3. Complex Pressing technics have been adopted in Front Equipment, which saves 3~4% steel materials for each 55 Gallon steel drum.
Automated steel drum seam welding machine production line 3

Automated steel drum seam welding machine production line 3

A. Cut the steel plate size: width 600-1320mm; thickness 0.6-1.4mm; B. Production capacity: cutting 15 time/minute; Max. Cutting speed 50-60m/minute; C. Total weight of the equipment: about 55 ton; D. Total power of the equipment: 48KW; E. Production level: cutting precision Length: tolerance 0.5mm; diagonal: tolerance 1mm
a. Coil cart: driven by 3 in 1 motor, hydraulic up and down;
b. Uncoil unite: no power turning, hydraulic driving, coil inner diameter Ф508-Ф610mm; Maximum load-bearing 15 tons;
c. 7 roller leveler machine: 7 rollers leveling, motor speed adjustable by change frequency;
d. Measurement facility: the length and precision is controlled by A.C. service motor made in Japan;
e. Transporter: rollers conveyer.
f. Cover Pressing Machine (160Ton press) : to forming the cover and bottom by 2-160 Ton punch press, the raw material is coiling steel plate, loading and unloading is Auto operating. Unit power is 15KW.
g. Double Locking Pressing Machine: to locking the small cover by 63Ton punch press.
h. Pre curling & spray sealing glue machine: Before seaming, the drum top and bottom need pre-curl, at same time must spray glue to ensure the seaming quality.
i. Cutter: 3×2000mm ;PLC control. producing PET plastic containers and bottles in all shapes.
Automated steel drum seam welding machine production line 5

Automated steel drum seam welding machine production line 5

Support various color LOGO customization fast production efficiency and automated support make production very simple

item	value
Condition	New
Machine Type	Welding Manipulator
Applicable Industries	Manufacturing Plant, Construction works , Energy & Mining, Other
After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
Showroom Location	Egypt, Turkey, United Kingdom, United States, France, Germany, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Morocco, Kenya, Argentina, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Australia
Core Components	PLC, Engine, Bearing, Gearbox, Pressure vessel, Gear
Speed	2~10pcs/min

Automated steel drum seam welding machine production line 6

Automated steel drum seam welding machine production line 7

Automated steel drum seam welding machine production line 8

Automated steel drum seam welding machine production line 9

Automated steel drum seam welding machine production line 10

Automated steel drum seam welding machine production line 11

Q Are you a trading company or a factory?
A We are an integrated industry and trade, and have our own factory.

Q Where is your factory located?
A Our factory is located in Songjiang district, Shanghai of China. In addition, we also have factories in Dongguan and Ningbo.

Q Can you customize the machine?
A We support OEM/ODM service and can customize the machine according to your requirements.

Q What is the MOQ?
A According to the customer's requirements.

Q What are your services during the purchase process?
A Pre-sales: Visit the factory, Technical solutions and program design services, Proofing services, Sample testing services.
On-sales: Technical training, Installation and commissioning services.
After-sales: Free non-wearable parts, Repair service, Video technical support, Online remote guidance.

Q How long is your warranty period?
A We offer a one-year warranty.

Q What is the payment terms?
A We ship with full payment, and we can negotiate payment terms.

Q How long is the delivery time?
A Delivery time for standard machines: 7-15 working days
Delivery time for customized machines: According to the degree of customization, about 1-3 months

Q Can you provide samples?
A We provide sampling service, but you need to send us the sample by courier.
