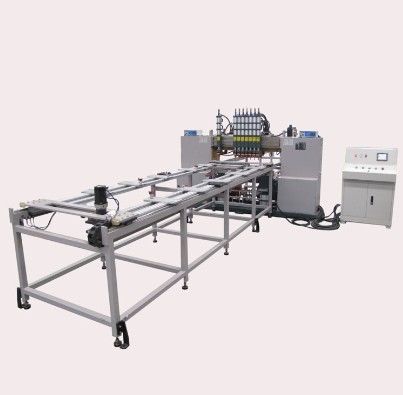

Image Grand :  Fully automatic high-speed metal mesh gantry welding machine - 80 times per minute. Mesh gantry welding machine.

Détails sur le produit:
Lieu d'origine: Chine
Nom de marque: TRINTFAR
Certification: CE
Numéro de modèle: DNW-1000
Conditions de paiement et expédition:
Quantité de commande min: 1
Prix: USD 10000-30000 Set
Détails d'emballage: boîte en bois
Délai de livraison: D'ici 90 jours du paiement final
Conditions de paiement: L/C, D/A, D/P, D/P, T/T
Capacité d'approvisionnement: 500 par an

Fully automatic high-speed metal mesh gantry welding machine - 80 times per minute. Mesh gantry welding machine.

description de
Nom du produit: Machine de soudure à grande vitesse complètement automatique de panneau de grillage de machine de so Type de machine :: Machine de soudage en mailles
Service après-vente fourni: Support technique vidéo Standard: CE / CCC / ISO
Poids (kg):: 500 kg Garantie: 1 an
Usage:: Soudage Capacité nominale: 60 KVAS

Full Automatic High Speed Welding Machine Wire Mesh Panel Welding Machine


This machine is improved by our company according to the needs of customers.the machine has added an intelligent roll mesh system on the basis of the original one,which can adjust the roll mesh speed according to the welding speed of the machine, so as to make the mesh roll even and beautiful.after the mesh roll is bundled, the system will automatically unload themesh roll, saving labor.





1 The mesh size is directly set on the touch screen, which is convenient and simple.

2 Vibration device is added to the cross wire feeding system to prevent wire winding.
3 The line wire automatic wire feeding and the cross wire are pre-straightening and cutting.
4 Cross wire adjustment on screen, line wire adjustment need move the welding electrode.
5 The mesh roll length can be set by the control panel.
6 We can easily adjust the welding current when we need to weld different wire diameters.
7 We can set the output and stop the machine automatically after the mesh production finished.
8 The finished product roll mesh is smooth and the error of opposite angle line is small.




Specification
Machine Specification
Model
DEW-1000
DNW-2000
DNW-3000
Mesh width
Max.2000 mm
Max.2500 mm
Max.3000 mm
Mesh hole size
100 mm
150 mm
200 mm
300 mm
100 mm
150 mm
200 mm
300 mm
100 mm
150 mm
200 mm
300 mm
Wire diameter
3.0-5.0 mm
3.0-5.0 mm
3.0-5.0 mm
Welding speed
40-80 Times/min
40-80 Times/min
40-80 Times/min
Transformer
125KVA*3
125KVA*4
125KVA*4
125KVA*5
125KVA*5
125KVA*6
Dimensions
8.5 X 2.5 X 1.65 m
9.5 X 3.0 X 1.65 m
12 X 3.5 X 1.65 m
Weight
5500 KG
6500 KG
7500 KG
Note: we can produce the machines according to your requirements.

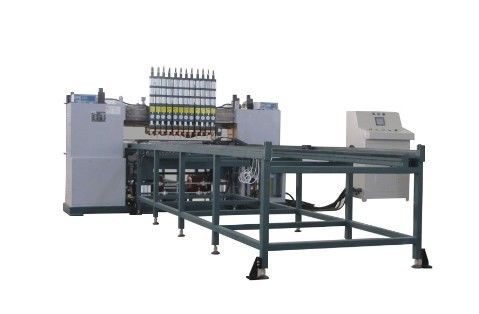

Fully automatic high-speed metal mesh gantry welding machine - 80 times per minute. Mesh gantry welding machine. 0

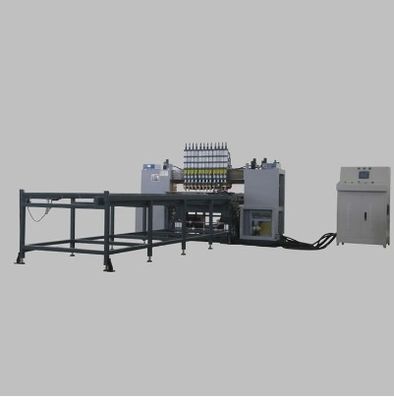

Fully automatic high-speed metal mesh gantry welding machine - 80 times per minute. Mesh gantry welding machine. 1

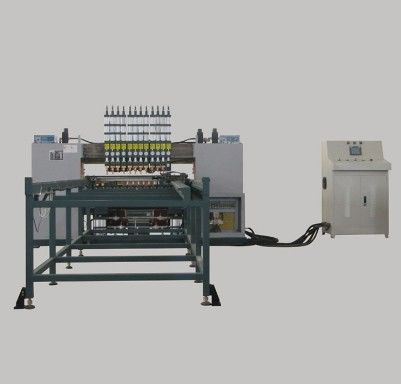

Fully automatic high-speed metal mesh gantry welding machine - 80 times per minute. Mesh gantry welding machine. 2

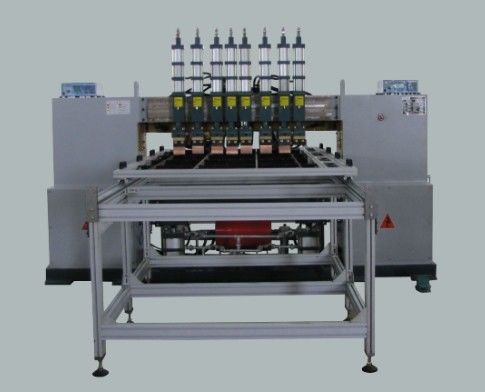

Fully automatic high-speed metal mesh gantry welding machine - 80 times per minute. Mesh gantry welding machine. 3
