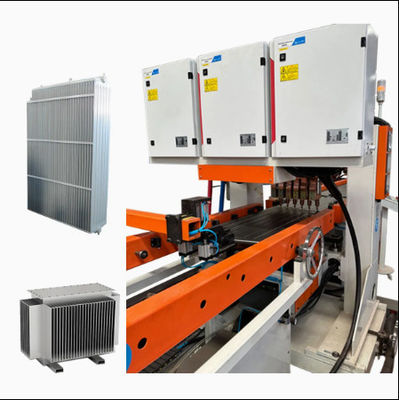

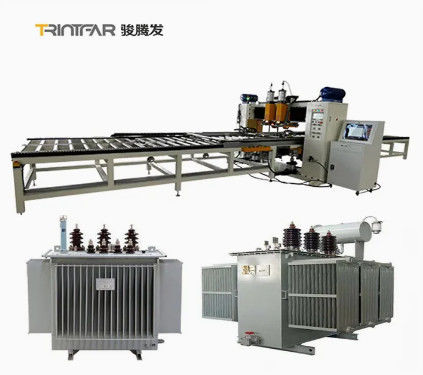

Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line

Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line
Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line
Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line

Image Grand :  Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line

Détails sur le produit:
Place of Origin: China
Nom de marque: Trintfar
Certification: CE
Conditions de paiement et expédition:
Minimum Order Quantity: 1
Prix: 10000~80000
Packaging Details: Wooden brackets/wooden cases
Delivery Time: 90~120
Payment Terms: L/C, D/A, D/P, T/T
Contact

Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line

description de
Automatic Production Line: Comprehensive Flexible Production: Intelligent Manufacturing
Automation: Automation Warranty: 1 Year Warranty
Specification: other Origin: China
Production Scope: Product Line Certification: ISO, CE, ABS

Workflow

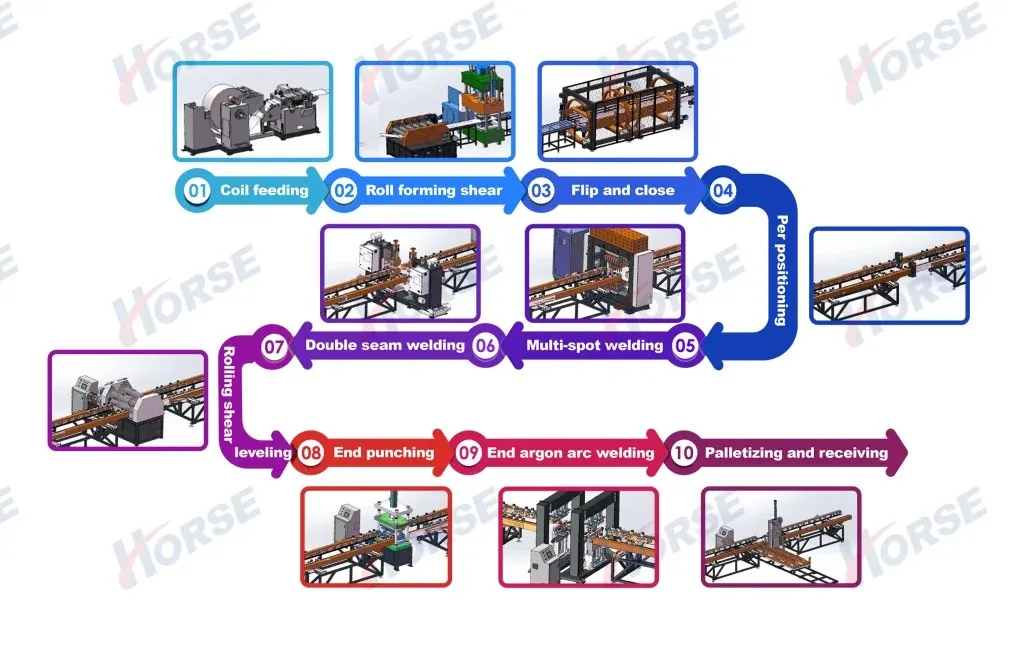

Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line 0Work flow:Decoiling→roll forming→ hydraulic press→ turn over → multiple spot welding→ side seam welding → head welding → side shearing → head cutting → end product → automatic panel stacking machine


Main equipments

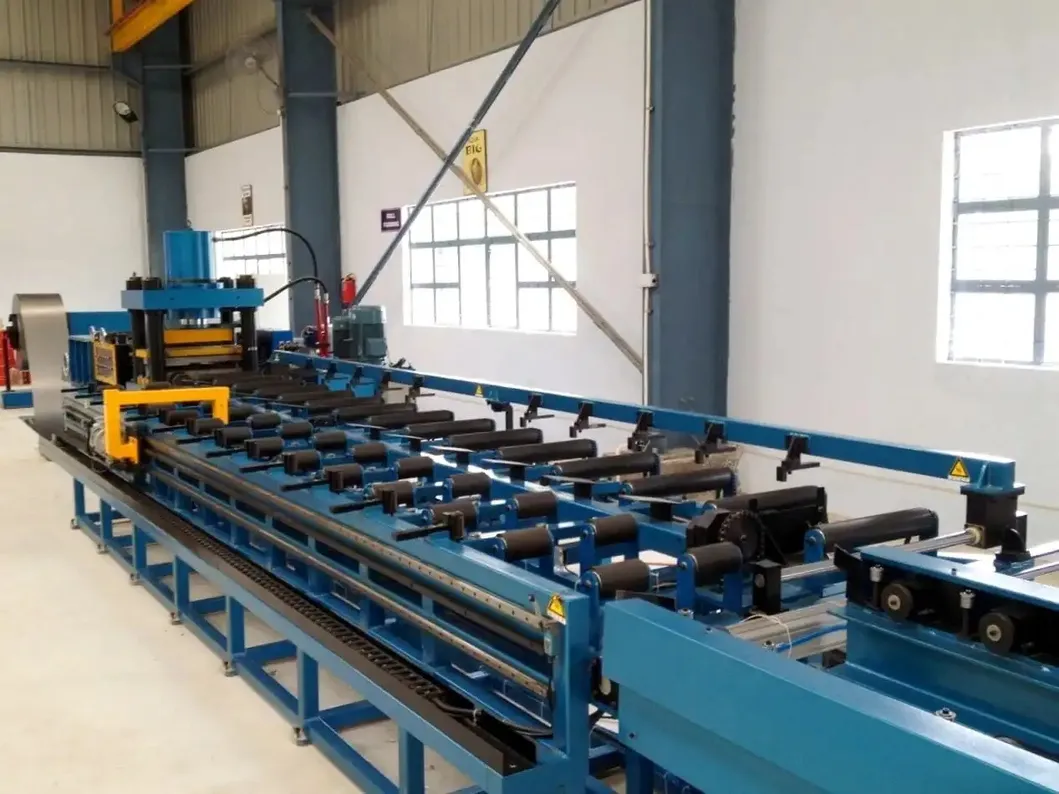

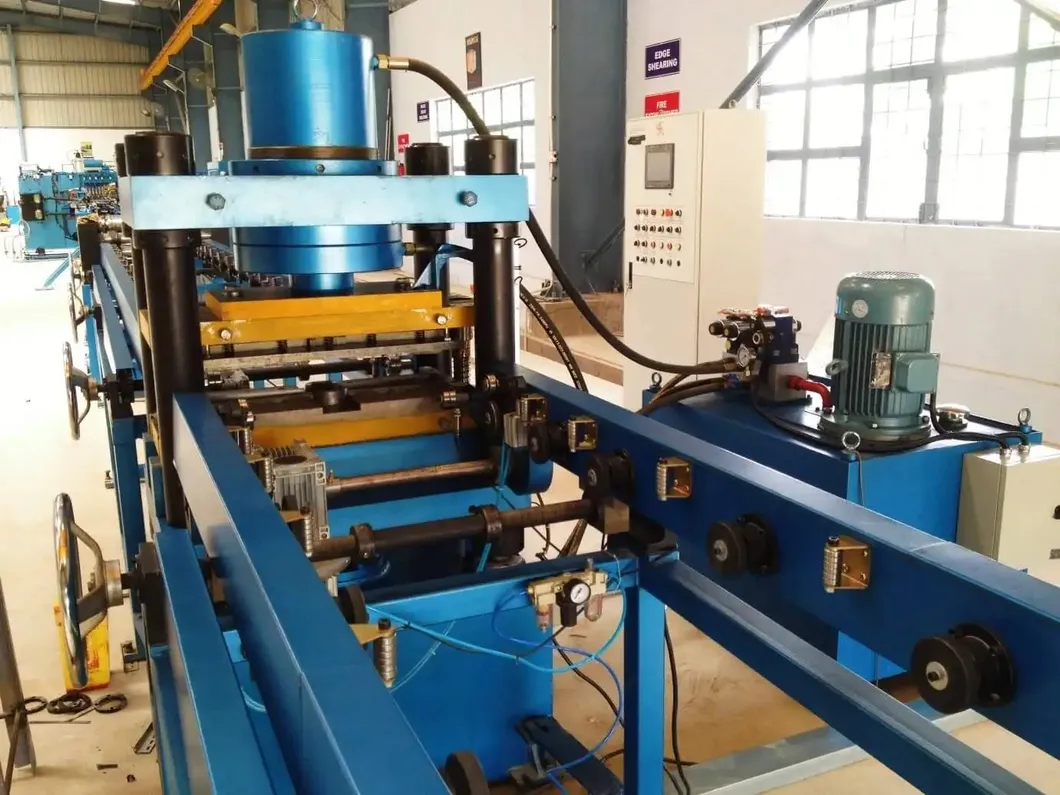

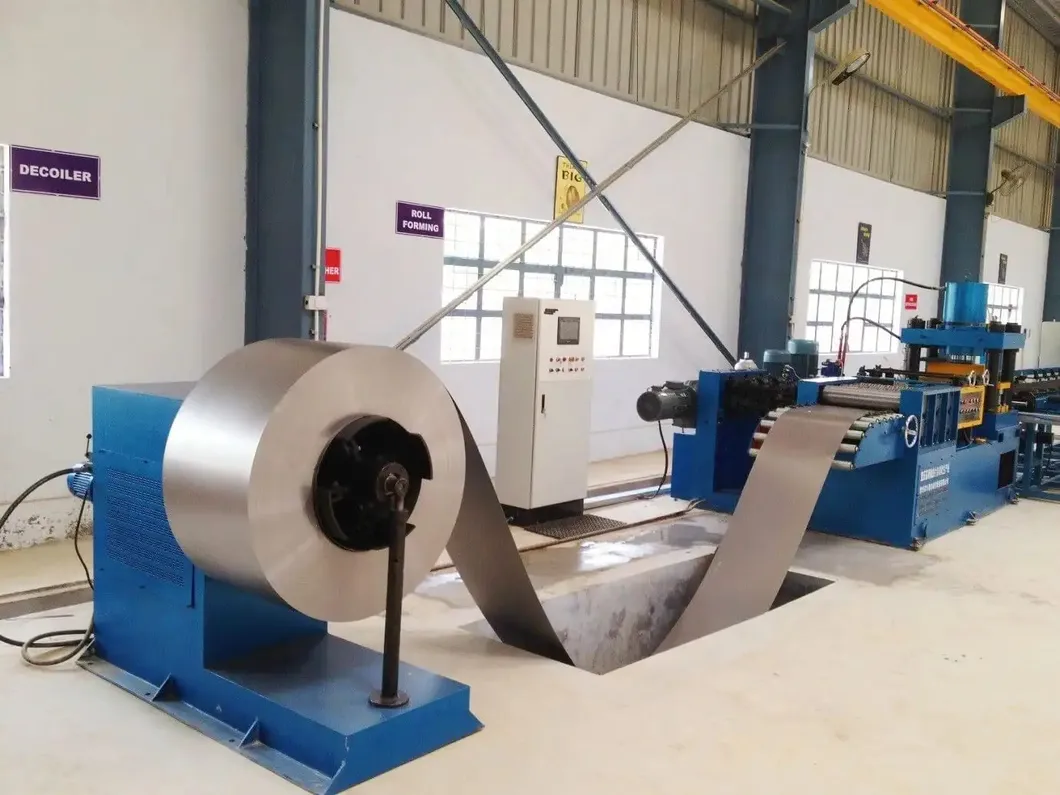

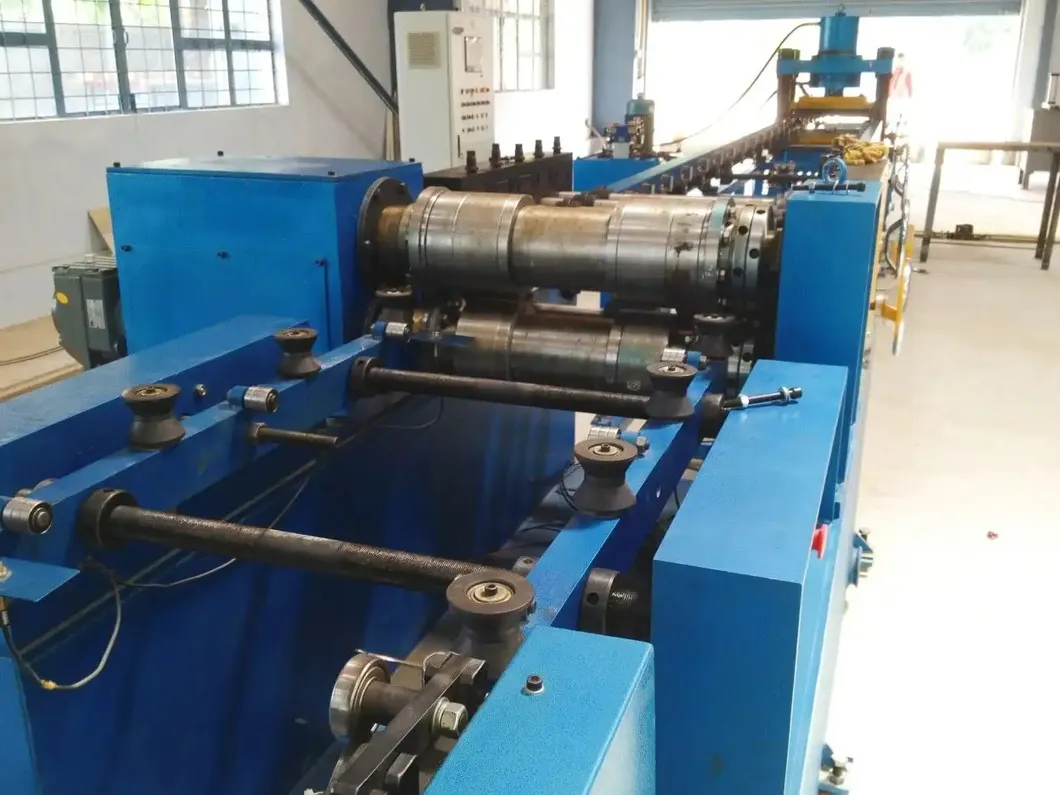

Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line 1 Rolling forming station

Rolling speed: 6-14 m/min

Adjustable pressure

End punch: 315-ton hydraulic press

Rotary encoder & servo drive for length/size accuracy of fins

Leveling mechanism ensures flatness of single piece

Unrolled material placed on 5-ton unloading rack via loading trolley & rolled into sheets

Optional buffer pit per customer request

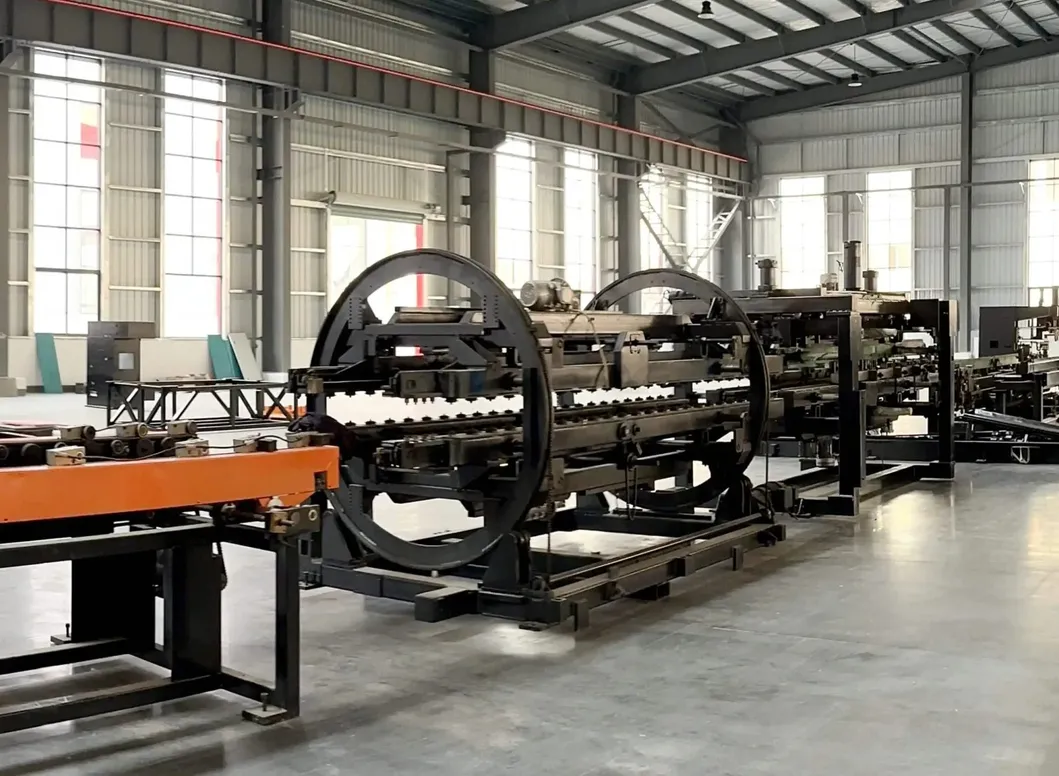

Flipping and joining station

Conveying speed: 5-15 m/min

180° flipping of radiator fins

Flipping device: rotating rack, flipping rack, transmission system, flipping device, pushing device, etc.

First sheet reaches preset position → flipped to opposite conveying rack

Second sheet reaches preset position → pushing device moves it onto the first sheet, completing the joining		 Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line 2
Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line 3 Double-head pre-spot welding station

Two sets of spot welding pressure devices

Power: 60 KVA

After flipping & assembly, pre-spot welding machine aligns & fixes workpieces for multi-spot welding

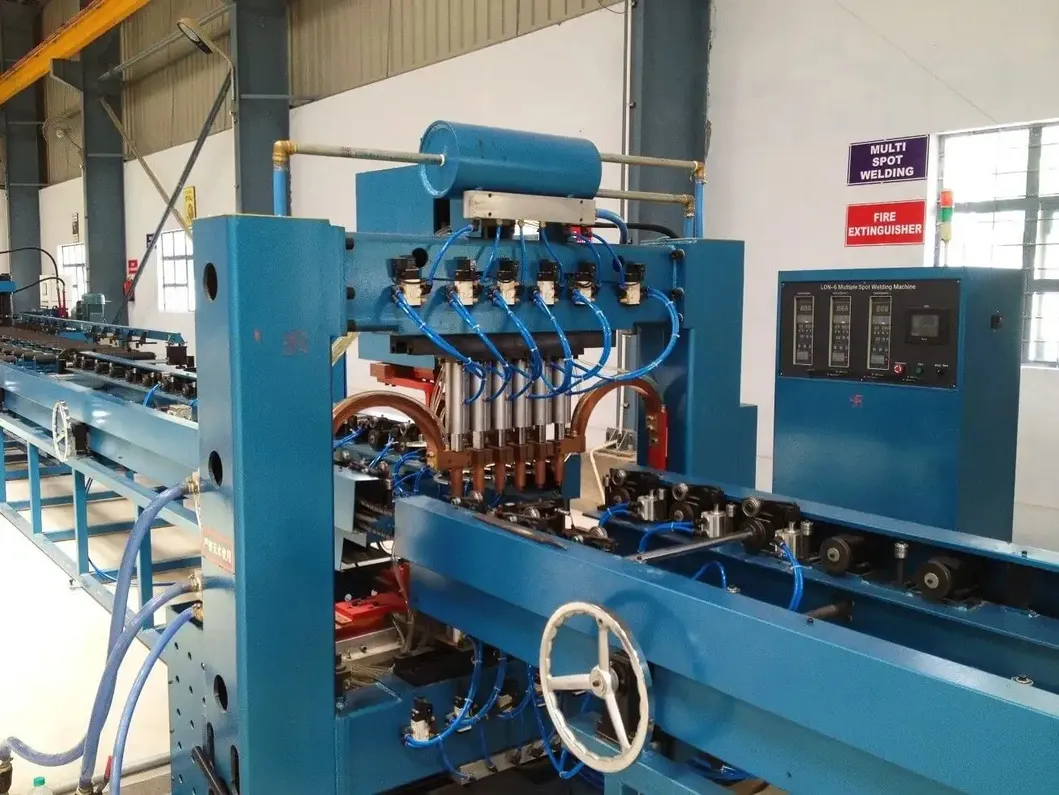

Gantry multi-spot welding station

12 sets of spot welding pressure devices

Double-head welding head, 6 points/row

AC power supplies: 12 sets

Power: 12 * 50 KVA

Double-row welding for improved efficiency		 Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line 4

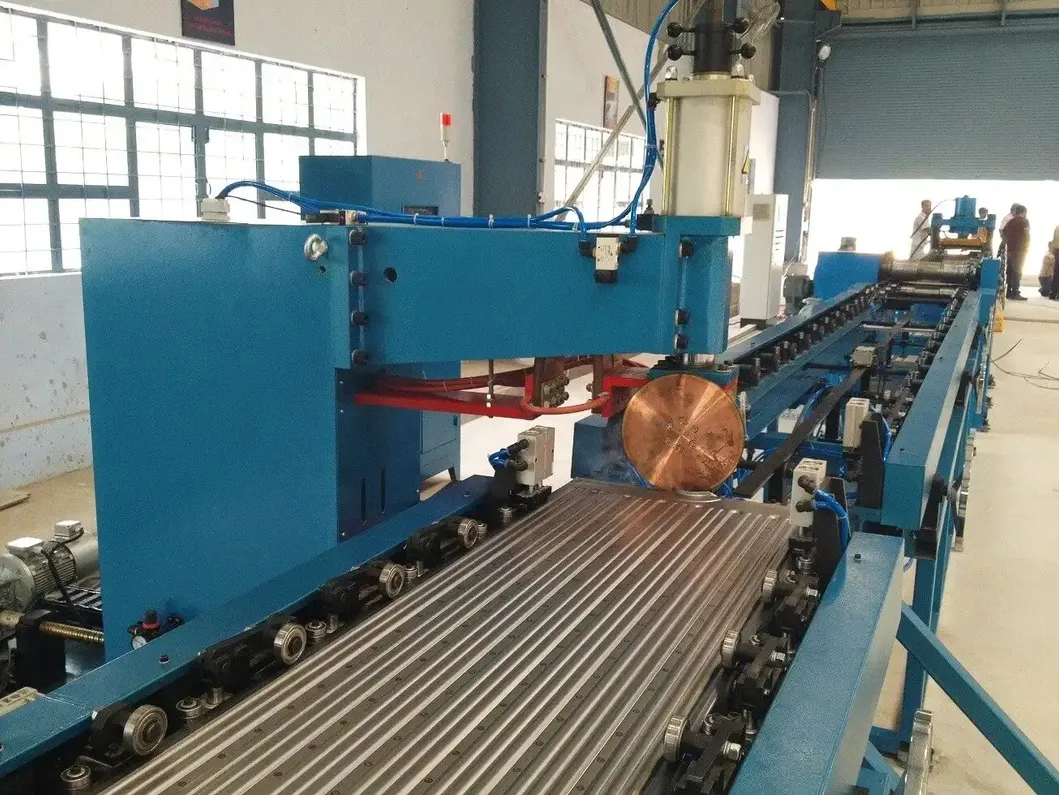

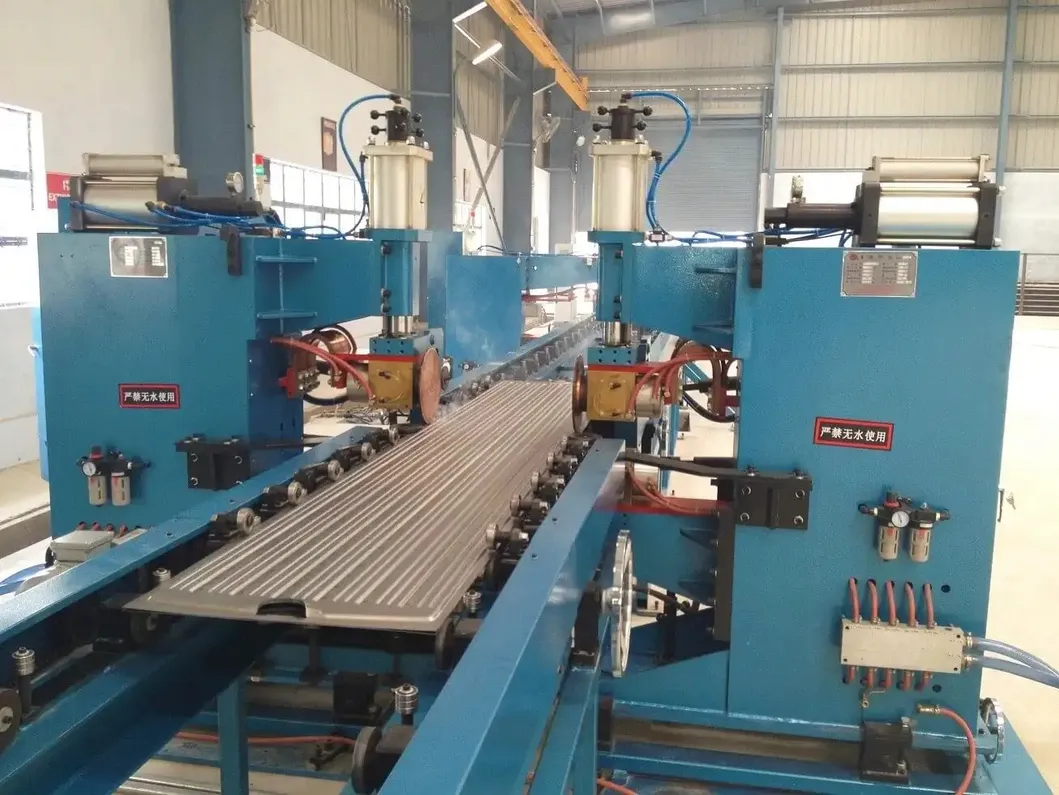

Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line 5 Double-sided seam welding station

2 sets of seam welding machines, symmetrically arranged

4 sets of seam welding pressure heads

2 sets of variable frequency welding power supplies

Power: 2 * 160 KVA

Max pressure: 12,000 N

Differential transmission mechanism

Seam welding speed: 0-2.8 m/min
Rolling shearing and leveling station

Composed of machine box, drive device, shearing device, edge crushing mechanism, leveling mechanism, electronic control system, pneumatic system, etc.

Rolling shear disc cuts both sides; cutter disc made of alloy tool steel (impact-resistant, wear-resistant, long service life)

Rolling shearing speed: 2-6 m/min

Driving power: 4 kW		 Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line 6
Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line 7 End punching station

Composed of base, lifting mechanism, punching frame, punching die, punching cylinder, lifting cylinder, and hydraulic station

Used for shearing loose ends to ensure edge alignment and consistency

Punching die with beveled edge to reduce punching force

Punching machine pressure: 160 T
End argon arc welding station

2 sets of equipment, arranged symmetrically

1 set for welding front end, 1 set for welding rear end of workpiece

4 sets of Panasonic argon arc welding power supplies

Current range: 5-315 A

Welding speed: 300-600 mm/min		 Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line 8

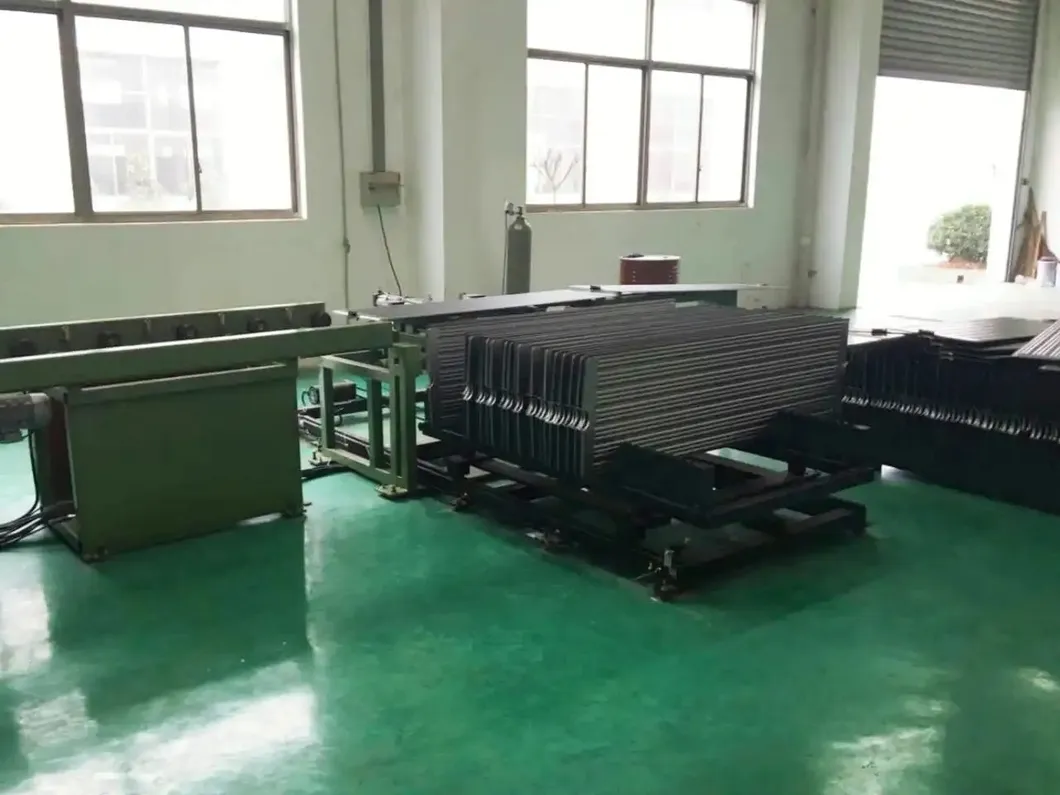

Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line 9 Palletizing station

Storage qty per palletizing rack: 40 pcs

Pallet spacing: 45 mm

Grabbing method: Cylinder clamps material, gripper turns 90° to place on rack

Material cart working method: Servo stepping movement, moves to next position after placing 1 piece, manual cart replacement when rack is full



Optional accessory machines

Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line 10 Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line 11 Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line 12 Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line 13

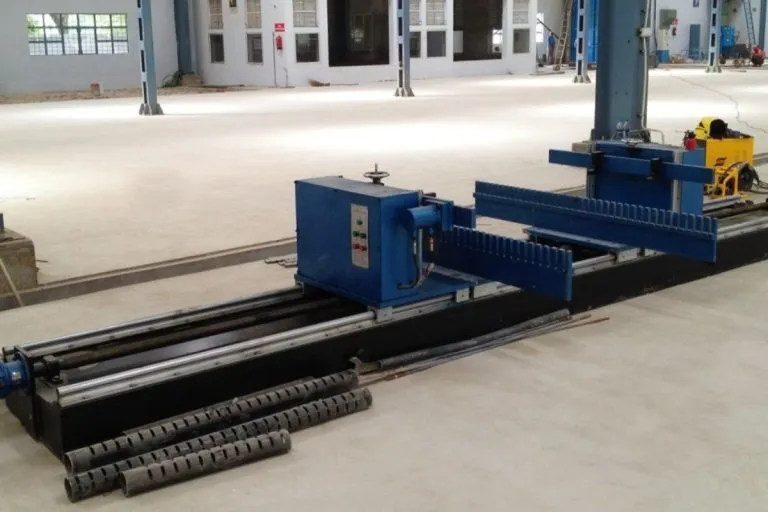

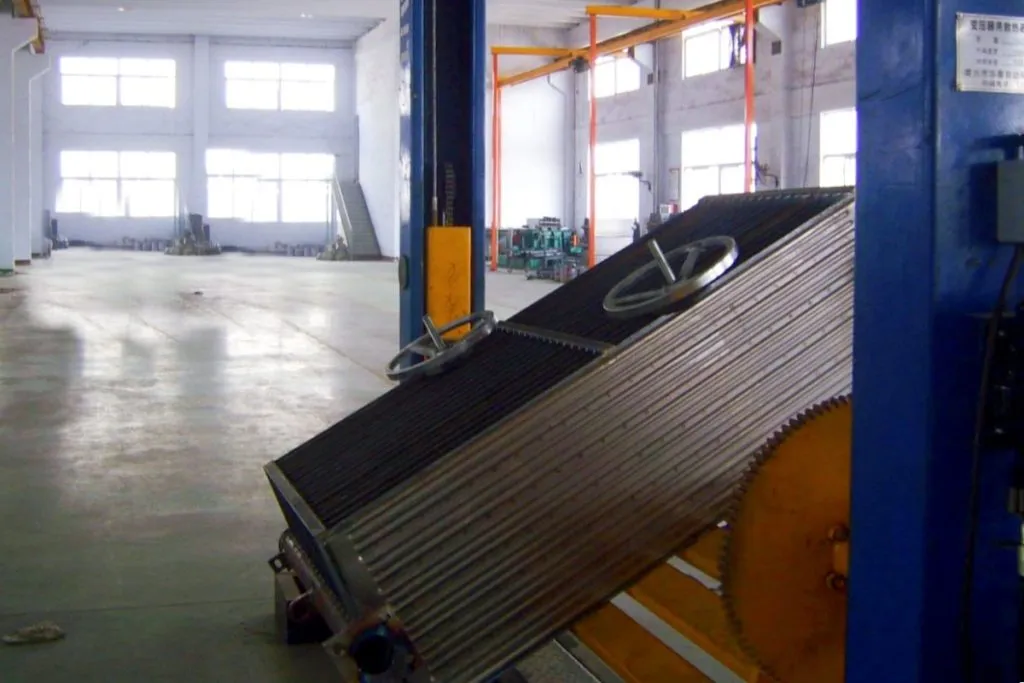

Header pipe punching machine Assembly Fixture Flange welding table Turn over table for assembling welding

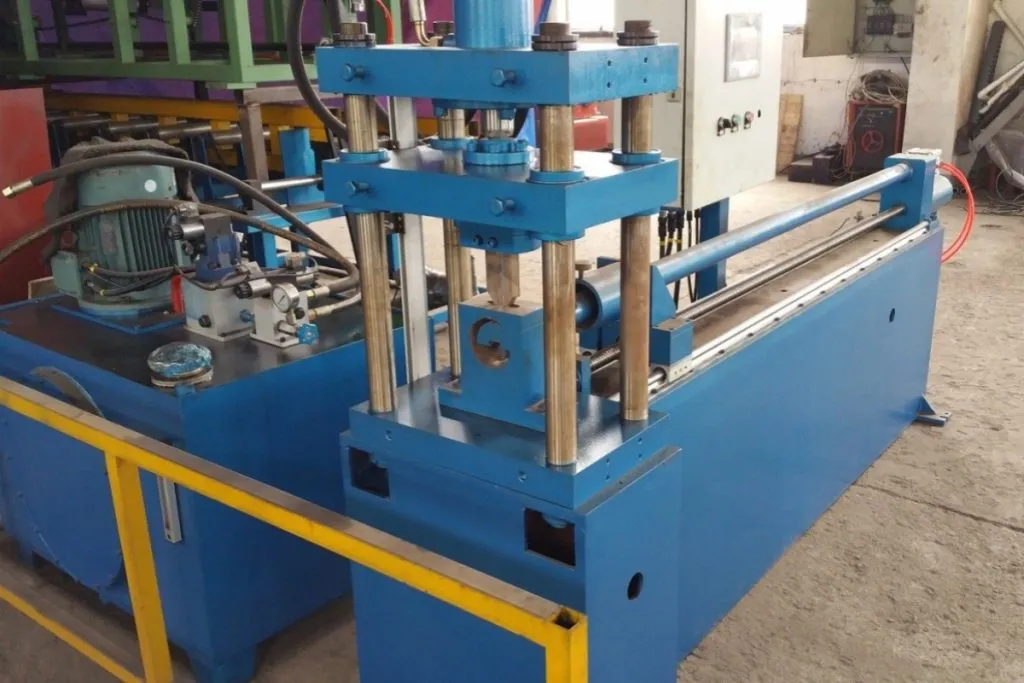

The Header Punch Machine automatically indexes to create up to 40 slot pairs on a pipe (max 40 panels). The pipe is cut with 2 specially shaped rectangular slots per panel. Internal support prevents deformation during punching. Cycle time per punch: ~6 seconds. The Horizontal Assembly Fixture aids in assembling radiator panels to header pipes. Panels are placed in a rack fixture at the Automated Stacking Machine and then into the fixture. One end is manually adjusted for length, while the other end uses a hydraulic press to hold and position for tack welding. The powered flange-mount fixture is designed to accurately align mounting flanges on the radiator centerline. With powered adjustments for panel length and assembly depth, it allows quick reconfiguration for production changes. Servo motor positioning ensures precise assemblies. The powered turnover fixture is designed to turnover the radiator elements for the radiator assembly, after welding the header pipe from one side, then turnover the radiator to weld another side.



Other informations

Product Details Technical Services
Trintfar Horse Transformer Radiator Fin Production Line meets international standards and offers a more economical and competitive price. Adhere to customer-centricity and provide your company with comprehensive pre- sales and after-sales services such as installation, commissioning, training, and maintenance.

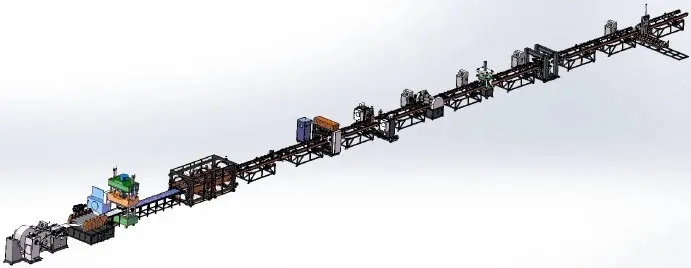

Fully Automatic Transformer Radiator Fin Production LineLayout Diagram

Pre-sales service: Before signing the contract, the company provides customers with various production process solutions and technical consulting services for equipment.

Installation and commissioning: According to the contract, our company will safely transport the equipment to the installation site designated by the user within the specified time, and send technical service engineers to install it on site. When the user has the basic installation and commissioning spare parts, the technical service engineer will install and debug the machine for the user to use, ensuring that the installation and commissioning site environment is neat, clean and orderly.

After-sales Training: The company offers free technical training (min. 5 days) at the buyer's site or the seller's training center. Key topics include:

  • -Control software usage
  • -Power on/off procedures
  • -Panel and software parameter settings
  • -Basic machine cleaning and maintenance
  • -Handling common hardware failures
  • -Operational precautions

Equipment maintenance

  • -One-year warranty after final acceptance;
  • -Customer service response time is within 24 hours;
  • -Paid repairs are provided after the warranty period.
Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line 14

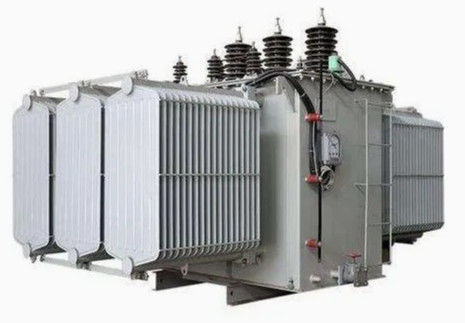

Production Results

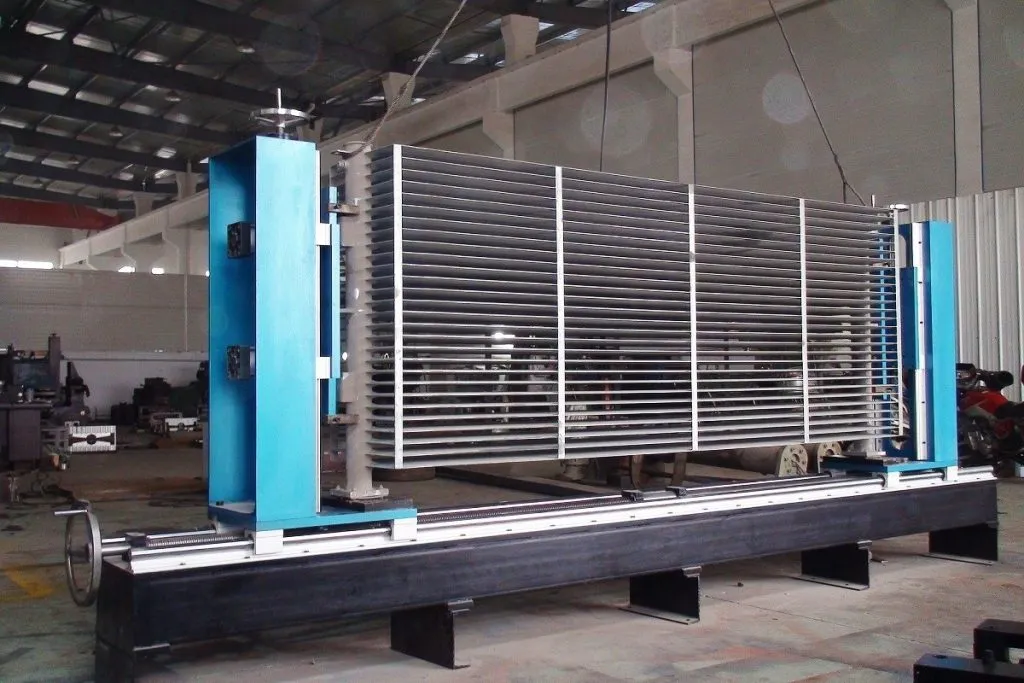

Cooling Corrugated Fin Walls Distribution Power Transformer Oil Immersed Radiator Fin Automatic Welding Production Line 15


Equipment Configuration List

No Name Model Qty Unit
1 Automatic unwinding machine FJJ-0-0 1 Set
2 Rolling forming shearing machine CXJ-0-0 1 Set
3 Turning and assembling machine FZJ-0-0 1 Set
4 Double-head pre-spot welding machine DN60-2C 1 Unit
5 Gantry 12-head spot welding machine LM-12C 1 Unit
6 Double-side seam welding machine 2*FVM160-2C 1 Unit
7 Rolling and leveling machine JPJ-0-0 1 Unit
8 End punching machine CQJ-0-0 1 Unit
9 End argon arc welding machine YHH-4C 2 Unit
10 Finished product stacking machine MDJ-0-0 1 Unit
11 Conveyor rack SSJ-0-0 10 Unit

Control system List

Pneumatics Airtac
Control Mitsubishi or Siemens
Servo Systems Yaskawa
Linear Bearings & Actuators THK
Hydraulic Yuci
Electrical Schneider, Siemens
